Amerline's AEC 95234 series is a highly reliable connector series that is an improvement on the well-established 5015 type. This series has a proven bayonet coupling design that offers exceptional anti-vibration characteristics, with the added benefits of environmental sealing against fluid as well as easy connection/disconnection. AEC 95234 Reverse Bayonet connectors have the same arrangements, and accessories are compatible with the corresponding 5015 series connectors.
AEC 95234
Reverse Bayonet Series
AEC 95234 Reverse Bayonet Series
AEC 00
Reverse Bayonet Wall Mounting Receptacle
AEC 01
Reverse Bayonet Cable Connecting Plug
AEC 02

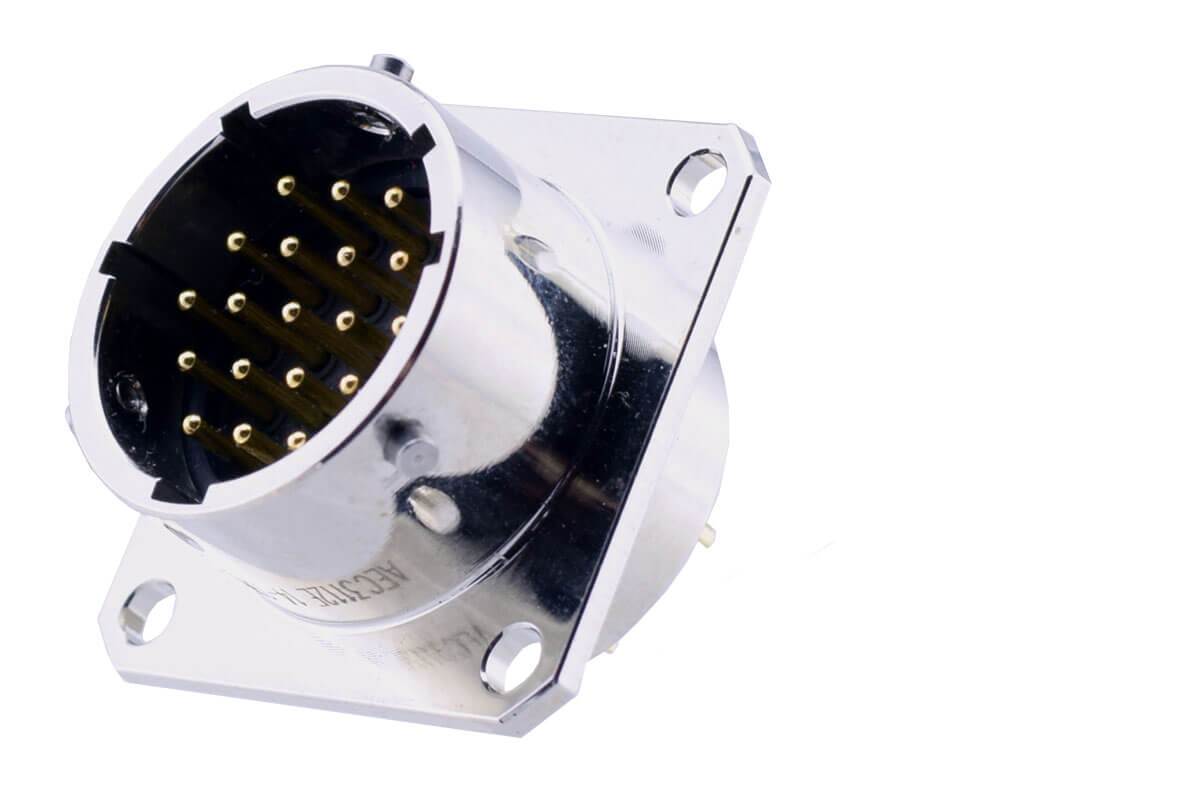

Reverse Bayonet Box Mounting Receptacle
AEC 07
Reverse Bayonet Jam Nut Receptacle
AEC 06
Reverse Bayonet Straight Plug
AEC 08
Reverse Bayonet Plug 90° Angle
AEC 3057-A
Reverse Bayonet Cable Clamp with Rubber Bushing
AEC CP
Reverse Bayonet Protective Cap for Plugs
AEC CR
Reverse Bayonet Protective Cap for Receptacle
RESOURCES
AEC 95234 Reverse Bayonet Series
-
Part Number Explanation: Standard
Part Number Explanation: Standard
-
Part Number Explanation: Specialty
Part Number Explanation: Specialty
-
Electronic Features
Electronic Features
Insulation Resistance -DC500V / 1000㏁ min -
Test Voltage
Test Voltage
Service Rating Test Voltage (Vrms) Instruments 1050 A 1600 B 4000 D 2500 E 3000 -
Prefix
Prefix
Classification Description 00 Wall mounting receptacle 01 Cable connecting plug 02 Box mounting receptacle 05 Dummy receptacle for panel mounting 06 Plug, Straight 08 Plug, 90° angular 07A Jam nut receptacle 07G Jam nut receptacle with RFI / EMI shielded coil within shell 070A Jam nut receptacle with rear threaded for accessories 070G Jam nut receptacle with RFI / EMI shielded coil within shell and rear threaded for accessories TB Thru-Bulkhead receptacle -
AEC 95234 Reverse Bayonet Part Number Cross Reference
AEC 95234 Reverse Bayonet Part Number Cross Reference
VG Spec. Amerline VG95234 J/N/U/S AEC00 VG95234 F AEC01 VG95234 A/B AEC02 VG95234 G/H/L/M/R AEC06 VG95234 E/K AEC08 VG95234 C AEC TB -
Material / Finish
Material / Finish
Shell Aluminum alloy with olive drab chromate coating over cadmium plating Insulator Grommet Synthetic rubber Contacts Copper alloy with silver plating -
Class
Class
Classification Description E Environmental connector with resilient insulators and endbell of clamp and bushing F Environmental connector with resilient insulators and endbell for flex tube 00EP-TLxx Tinel-lock adapter 06EW-TLxx Tinel-lock adapter 00EP-ZLxx Zetlock adapter 06EW-ZLxx Zetlock adapter -
Finish Options
Finish Options
Suffix Finish RoHS Blank Olive Drab over Zinc (default) BLK Black Zinc BR Electro-deposited Black (RoHS)
(500hrs salt spray test)
BZR Black Zinc RoHS
(Black trivalent chromate over zinc plating)EN Electroless Nickel N Nickel OR Electro-deposited Olive Drab (RoHS)
(500hrs salt spray test)ODZ Olive Drab over Zinc -
Contact Type
Contact Type
P Pin contact S Socket contact PS Pin at one side with socket on the side (only for TB) -
Modifications
Modifications
Classification Description 02 Flange with thru-holes for rear mounting (AECB00, 02E, TB) 05 Environmental connector with resilient insulators and endbell for flex tube 08 90° angle shell with threaded holes in flange (AECB00) 09 90° angle shell with thru-holes in flange (AECB00) 15 Endbell for shielded cables and heat shrinkable boots, AWG crimp contacts 109 Flange with threaded holes for rear panel mounting (for receptacle only) F80 AWG receptacle contacts -
Characteristics
Characteristics
Ambient Temperature -55℃ to 125℃ Safety Provision 1P 67 according to DIN 40050 (1bar pressure after 12 hrs.) Vibration Test 200㎨ (10~2000Hz) Mating Life 500 cycles minimum
