Looking for MS circular multipin connectors? Check out our drop-in equivalent Commercial Series AEC® Connectors.
Produced to the same rugged standards as our mil-spec connectors and field tested in a variety of environments, our AEC connectors are the go-to solution when cost savings, reduced lead times and dependable quality are required.
Ordnance Connector Components
Ordnance Part Numbers refer to the designation given to U.S. military vehicles and directly related material. National Stock Numbers (NSN) are a 13-digit numeric code identifying all the standardized material items of supply as recognized by the U.S. government and NATO countries.
Nuts, clamps, and Misc - National Stock Numbers
| Ordnance Number | Description | National Stock Number | Bendix / Amphenol Part Number |
|---|---|---|---|
| 503060 | Lock nut | 5975-00-330-0120 | |
| 705664 | Nut packing gland | 5975-00-705-6642 | |
| 7056664 | Packing gland | 5330-00-092-6881 | |
| 7057355 | Washer spring | 5310-00-705-7355 | |
| 7388355 | Grommet nut sz 32 | 5935-00-729-8217 | 60-037005-321 |
| 7527643 | Coupling nut sz 12 | 5975-00-697-6991 | 60-40457-12 |
| 7527644 | Coupling nut sz 14 | 5975-00-752-7644 | 10-40457-14S |
| 7527645 | Coupling nut sz 16 | 5975-00-697-7769 | 60-40457-16 |
| 7716634-1 | Coupling nut sz 28 | 5975-01-151-7033 | |
| 7716634 | Coupling nut sz 28 | 5975-00-771-6634 | 10-40459-28 |
| 7722325 | Coupling nut sz 22 | 5310-00-482-8989 | |
| 7722326 | Coupling nut sz 28 | ||
| 7723306 | Grommet nut sz 12 | 5935-00-333-3088 | 60-037005-131 |
| 7723307 | Grommet nut sz 16 | 5935-00-772-3307 | 10-037005-171 |
| 7723308 | Grommet nut sz 22 | 5935-00-333-9414 | 60-037005-221 |
| 7723309 | Grommet nut sz 28 | 5935-00-393-6685 | 60-037005-281 |
| 7728599 | Grommet nut sz 14 | 5935-00-772-8599 | 60-037005-141 |
| 7731428 | Dust cover | 5935-00-773-1428 | 60-036397-028 |
| 7971728 | Coupling nut sz 32 | 5975-00-800-7477 | |
| 7971729 | Cable clamp | 5935-00-621-1442 | |
| 7973504 | Clamp assembly sz 22 | 5935-00-679-9663 | 60-36998-221 |
| 7973509 | Nut wing | ||
| 7974722 | Nut, cable clamp | ||
| 7974738 | Clamp assembly sz 28 | 5935-01-031-6333 | |
| 8369021 | Nut knurled | 5340-00-322-9527 | |
| 8395482 | Coupling nut | 5975-00-752-2746 | 10-037005-361 |
| 8701249 | Coupling nut sz 32 | 5310-00-678-4228 | |
| 8701325 | Coupling nut sz 22 | 5310-00-655-9860 | |
| 8701325-1 | Coupling nut sz 22 | 5310-01-154-6728 | |
| 8724263 | Clamp assembly sz 32 | 2590-00-679-9710 | |
| 8724278 | Ferrule | ||
| 8756336 | Threaded shield | 5975-00-405-1938 | |
| 10924256 | Nut | 5310-00-797-2058 | |
| 11668588 | Coupling nut | ||
| 12269226 | Nut adapter | 6150-01-144-8681 |

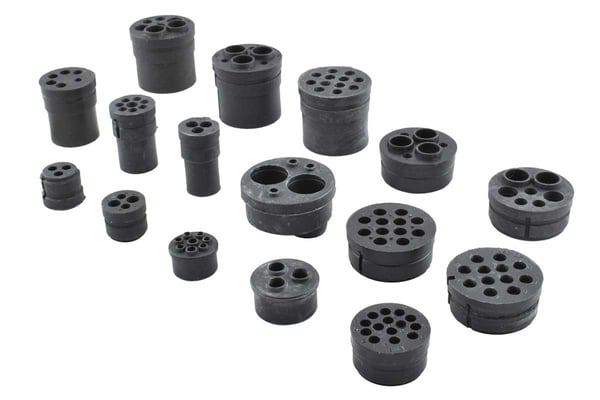

Grommets & Rubber Parts - National Stock Numbers
| Ordnance Number | Description | National Stock Number | Bendix / Amphenol Part Number |
|---|---|---|---|
| 7320686 | Grommet | 5325-00-732-0686 | |
| 7388351 | Grommet sz 22 | 5365-00-690-7933 | |
| 7388356-1 | Grommet sz 32 | 5365-01-292-5553 | |
| 7388356 | Grommet sz 32 | 5365-00-682-2043 | |
| 7388366 | Grommet sz 28 | 5365-00-507-8766 | |
| 7414180 | Grommet | 5325-00-741-4180 | |
| 7524564 | Grommet sz 22 | 5325-00-338-1274 | |
| 7527623 | Grommet sz 16 | 5325-00-598-5327 | 10-040817-054 |
| 7527628 | Grommet sz 16 | 5365-00-752-7628 | |
| 7527630 | Grommet sz 16 | 5340-00-752-7630 | 10-040817-12 |
| 7527631 | Grommet | 5365-00-752-7631 | |
| 7527633 | Grommet sz 22 | 5365-00-752-7633 | |
| 7722013 | Grommet | 5365-00-772-2013 | |
| 7722322 | Grommet sz 22 | 5340-00-772-2322 | 10-040822-23 |
| 7722323 | Grommet sz 22 | 5365-00-772-2323 | 10-040822-15 |
| 7722333 | Grommet | 5365-00-090-5426 | |
| 7722343 | Grommet sz 12 | 5365-00-772-2343 | 60-040813-05 |
| 7722344 | Grommet sz 16 | 5935-00-772-2344 | 10-040817-010 |
| 7728311 | Gasket pkg gland | 5935-00-772-8311 | |
| 7731435 | Grommet sz 22 | 5325-01-094-9284 | |
| 7762603 | Grommet sz 14 | 5365-00-629-7273 | |
| 7762625 | Grommet | 5365-00-200-6390 | |
| 7762626 | Grommet | 5365-00-598-5422 | |
| 7971722 | Grommet | 5325-00-613-6805 | |
| 7972327 | Grommet | 5325-00-899-1505 | |
| 7974632 | Grommet sz 28 | 5325-00-309-4017 | 10-040828-16 |
| 7992132 | Grommet sz 16 | 5365-00-332-7682 | 10-040817-11 |
| 7992134 | Grommet | 5325-00-563-4487 | 10-040822-19 |
| 8341848 | Grommet | 5365-00-303-4841 | |
| 8347008 | Grommet | ||
| 8376776 | Grommet sz 22 | 5365-00-318-8184 | 10-036625-05 |
| 8376929 | Grommet | 5365-00-552-8017 | 10-040828-22 |
| 8395483 | Grommet | 5365-00-678-4258 | 10-040836-03 |
| 8724264 | Grommet sz 28 | 5325-00-678-8435 | |
| 8724625 | Grommet | 5365-00-566-3854 | |
| 8741442 | Grommet | 5325-00-088-6147 | |
| 8756335 | Washer | 5970-00-466-8614 | |
| 8764828 | Grommet | 5325-00-930-5972 | |
| 10874855 | Grommet | 5935-00-784-1701 | 60-040828-222 |
| 10874858 | Grommet | 5935-00-770-8274 | |
| 10897987 | Grommet | 5365-00-812-1794 | |
| 10919887 | Grommet | 5325-00-987-5066 | |
| 10935698 | Grommet | 5325-00-939-7104 | |
| 11668589 | Grommet | 5325-01-186-5549 | |
| 12260286 | Grommet | 5325-01-099-0667 | |
| 12260299 | Grommet | 5325-01-091-1319 |
